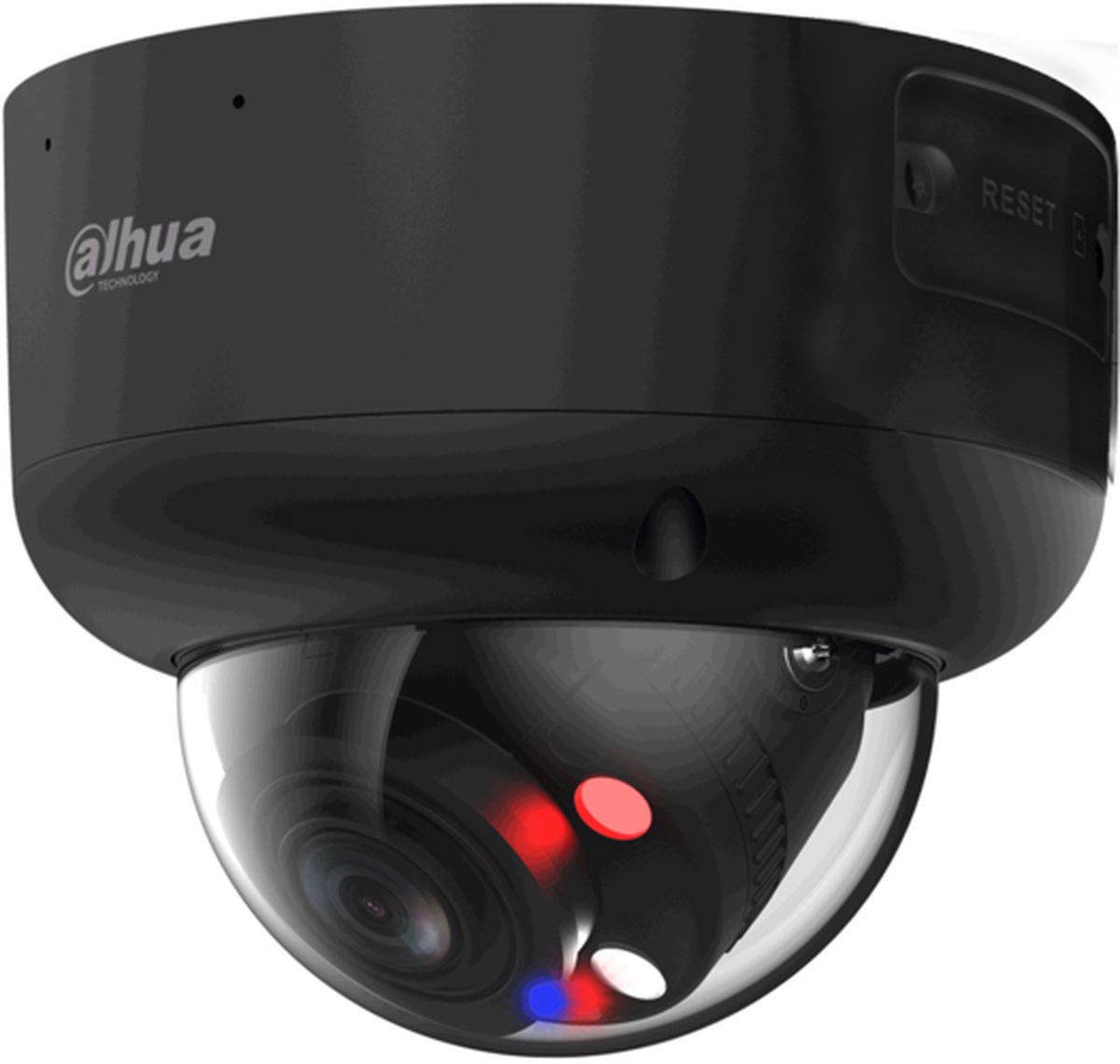

Dahua IPC-HDBW3449R1P-ZAS-PV - Tioc 2.0 - WizSense - 2,7-13,5mm Varioobjektiv - Dome - 4MP - IP - Weiß

Model: Dahua IPC-HDBW3449R1-ZAS-PV - Black4MP Smart Dual Illumination Active Deterrence Vari-focal Dome WizSense Network CameraFeatures 4-MP 1/2.7 CMOS image sensor, low luminance, and high definition image. Outputs max. 4 MP (2688 × 1520)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m. ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk. 12 VDC/PoE power supply. IP67, IK10 protection. Sound and light alarm (red and blue lights). SMD 4.0. One-click arming/disarming through alarm inputSpecificationsCamera Image Sensor: 1/2.7 CMOS Max. Resolution: 2688 (H) × 1520 (V) ROM: 128 MB RAM: 512 MB Scanning System: Progressive Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Min. Illumination: 0.003 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (illuminator on) S/N Ratio: ï¹¥56 dB Illumination Distance 50 m (164.04 ft) (IR) 40 m (131.23 ft) (warm light) Illuminator On/Off Control: Auto/Manual Illuminator Number 2 (IR LED) 2 (warm light) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°Lens Lens Type: Motorized vari-focal Mount Type: φ16 Focal Length: 2.7 mm–13.5 mm Max. Aperture: F1.0 Field of View Horizontal: 103°–33° Vertical: 54°–18° Diagonal: 124°–38° Iris Type: Fixed Close Focus Distance: 1.5 m (4.92 ft) DORI Distance: Lens: W- T Detect: W: 65.2 m - T: 185.6 m Observe: W: 26.1m - T: 74.6m Recognize: W: 13.0m - T: 37.3m Identify: W: 6.5m - T: 18.7mProfessional, intelligent IVS (Perimeter Protection): Tripwire; intrusion (support the classification and accurate detection of vehicle and human) SMD 4.0: Less false alarm, longer detection distance Quick Pick: With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos AI SSA: Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.Video Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec: Smart H.265+; Smart H.264+ AI Coding: AI H.265; AI H.264 Video Frame Rate: Main stream: 2688 × 1520@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity Stream Capability: 3 streams Resolution: 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Bit Rate Control: CBR/VBR Video Bit Rate H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps Day/Night: Auto (ICR)/Color/B/W BLC: Yes HLC: Yes WDR: 120 dB Scene Self-adaptation: Yes White Balance: Auto; natural; street lamp; outdoor; manual; regional custom Gain Control: Auto; manual Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas) Region of Interest (RoI): Yes (4 areas) Image Stabilization: Electronic Image Stabilization (EIS) Smart Illumination: Yes Defog: Yes Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Mirror: Yes Privacy Masking: 4 areasAudio Built-in MIC: Yes Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723Alarm Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exceptionNetwork Network: RJ-45 (10/100 Base-T) SDK and API: Yes Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog;
