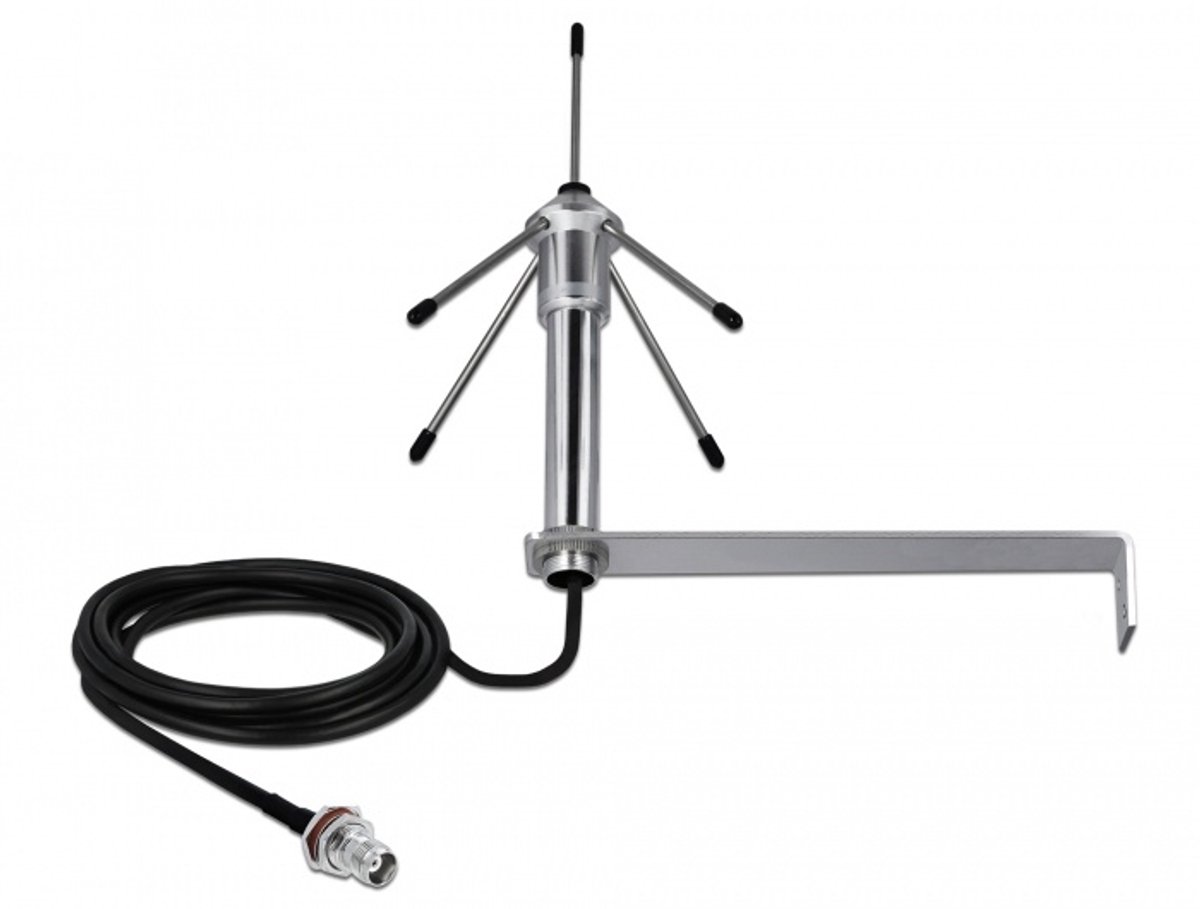

DeLOCK 12564 antena para red Antena omnidireccional TNC 3 dBi
Description This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors. LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and a low energy consumption. Specification • Connector: 1 x TNC jack• Frequency range: 868 MHz• Antenna gain: 3 dBi• Impedance: 50 Ohm• VSWR: 1.5• Polarisation: vertical• Operating temperature: -50 °C ~ 70 °C• Housing material: steel• Colour: silver• Cable: coaxial• Cable type: RG-58 C/U• Cable attenuation: 0.73 dB @ 1.0 GHz per meter• Cable diameter: ca. 4.95 mm• Smallest bending radius: 20 mm• Cable length incl.
Precio DeLOCK 12564 antena para red Antena omnidireccional TNC 3 dBi
Lo sentimos, no pudimos encontrar ninguna otra tienda.
Historial de precios
Reciba una notificación de precio
Información del producto
DeLOCK 12564 antena para red Antena omnidireccional TNC 3 dBi
Description
This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and a low energy consumption.
Specification• Connector: 1 x TNC jack• Frequency range: 868 MHz• Antenna gain: 3 dBi• Impedance: 50 Ohm• VSWR: 1.5• Polarisation: vertical• Operating temperature: -50 °C ~ 70 °C• Housing material: steel• Colour: silver• Cable: coaxial• Cable type: RG-58 C/U• Cable attenuation: 0.73 dB @ 1.0 GHz per meter• Cable diameter: ca. 4.95 mm• Smallest bending radius: 20 mm• Cable length incl. connectors: ca. 3.0 m• Dimensions (LxD): ca. 230.0 x 19.1 mm
System requirements• Device with one free TNC port
Package content
• Antenna• Wall mounting brackets
