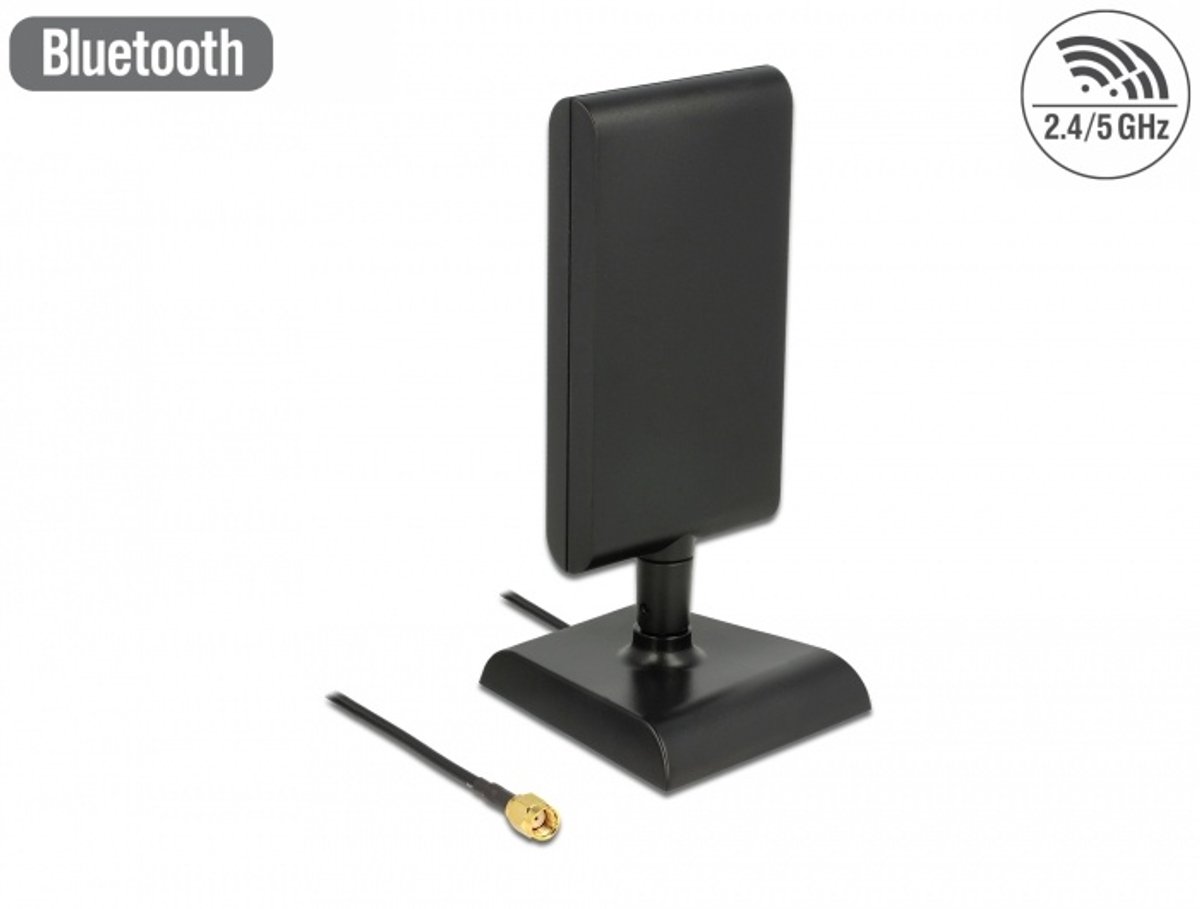

DeLOCK 89590 antena para red RP-SMA 9 dBi

Name: DeLOCK 89590 antena para red RP-SMA 9 dBi
Brand: Delock
SKU: 11132484

Description This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals. Specification • Connector: 1 x RP-SMA plug• Frequency range: 2.400 - 2.500 GHz 5.150 - 5.875 GHz• Compatible to Bluetooth• Antenna gain: 6 dBi @ 2.400 - 2.500 GHz 9 dBi @ 5.150 - 5.875 GHz• Impedance: 50 Ohm• Polarisation: linear, vertical• HBW horizontal beamwidth: 55°• VBW vertical beamwidth: 24°• VSWR: 2.5• Operating temperature: -10 °C ~ 55 °C• Housing material: ABS• Colour: black• Antenna length including magnetic base: ca. 16.2 cm• Features of the base: magnetic on the bottom rubberized bottom wall mountable• Cable: coaxial• Cable type: ULA 100• Cable colour: black• Cable attenuation: 1.4 dB @ 2.5 GHz per meter• Cable diameter: ca. 2.79 mm• Cable length: ca. 1 m• Dimensions: antenna (LxWxH): ca.

Precio DeLOCK 89590 antena para red RP-SMA 9 dBi

Lo sentimos, no pudimos encontrar ninguna otra tienda.

Historial de precios

Reciba una notificación de precio

Información del producto

DeLOCK 89590 antena para red RP-SMA 9 dBi

Description

This Wireless LAN antenna can be connected to a WLAN device with RP-SMA interface, in order to send and receive signals.

Specification

• Connector: 1 x RP-SMA plug• Frequency range: 2.400 - 2.500 GHz 5.150 - 5.875 GHz• Compatible to Bluetooth• Antenna gain: 6 dBi @ 2.400 - 2.500 GHz 9 dBi @ 5.150 - 5.875 GHz• Impedance: 50 Ohm• Polarisation: linear, vertical• HBW horizontal beamwidth: 55°• VBW vertical beamwidth: 24°• VSWR: 2.5• Operating temperature: -10 °C ~ 55 °C• Housing material: ABS• Colour: black• Antenna length including magnetic base: ca. 16.2 cm• Features of the base: magnetic on the bottom rubberized bottom wall mountable• Cable: coaxial• Cable type: ULA 100• Cable colour: black• Cable attenuation: 1.4 dB @ 2.5 GHz per meter• Cable diameter: ca. 2.79 mm• Cable length: ca. 1 m• Dimensions: antenna (LxWxH): ca. 162 x 66 x 18 mm base (LxWxH): ca. 80 x 77 x 15 mm

System requirements

• Device with a free RP-SMA jack
